4-Post Jacking Beams for Full Wheel Service

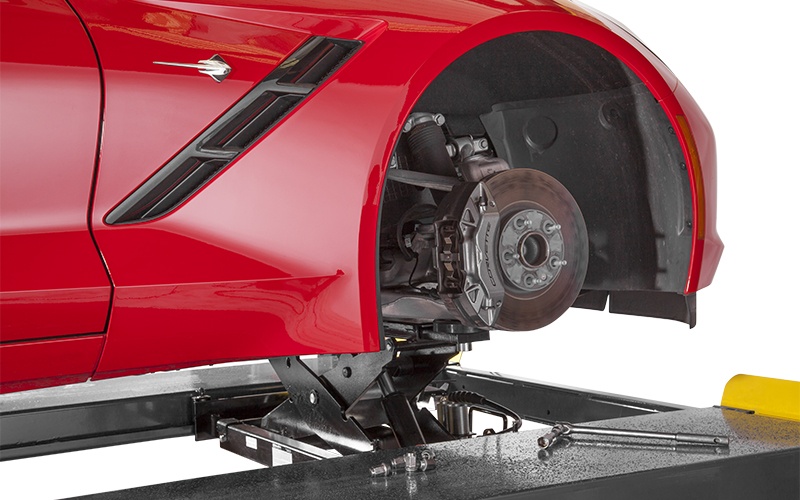

A rolling jacking beam is the only way to turn a four-post lift into a full-service car lift. Each frame-engaging jack lifts one-half of your car, and two will raise all four wheels off the runways. Wheel service becomes a cinch, and your BendPak might be the last lift you ever purchase for service and vehicle storage.
BendPak offers seven jacking beam models that are designed to hold between 2,041-kg. and 11,340-kg. each. Each jack is placed on top of a four-post lift, so it can slide between the runways. It elevates the frame of your vehicle to permit access to the wheels. Jacking beams help get the most out of your car lift and dramatically increase your service abilities. You'll be able to change tires without sending your wheels across the street. Simply balance them on your own wheel balancer. If you purchased an alignment lift and wheel aligner, you can perform full alignment services after returning fresh, balanced tires and wheels to the car. By not having to change lifts, you revolutionize your workflow with greater efficiency, and ultimately, more profit.

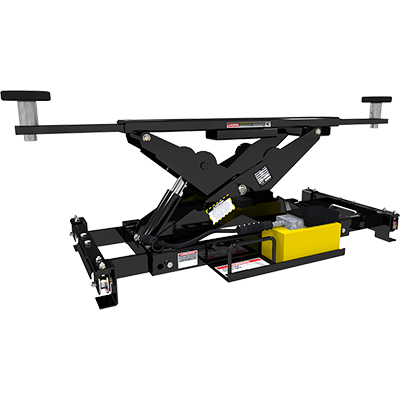

RJ45LP (5175579)
2,041-kg. Capacity / Rolling Bridge Jack / Easy-Roll Wheels / Low-Profile
BendPak RJ45LP Jacking Beam is designed to hold up to 2,041-kg. and features a low-profile design with easy-to-roll wheels. Use this 4-post Jacking Beam with your BendPak HD-9 series four-post car lift for increased versatility and productivity.

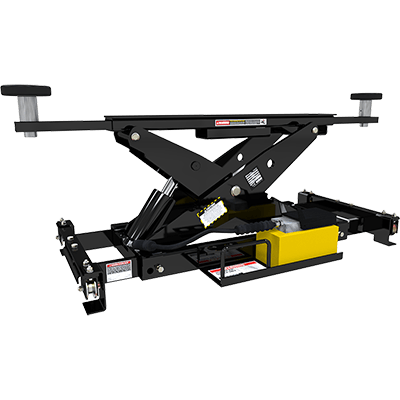

RJ45W (5175247)
2,041-kg. Capacity / Jacking Beam / Easy-Roll Wheels
BendPak RJ45W rolling bridge jack is designed to hold up to 2,041-kgs. and features easy-to-roll wheels that make sliding simple between the four-post lift runways. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.
RJ6W (5175248)
2,722-kg. Capacity / Rolling Bridge Jack / Easy-Roll Wheels
This 2,722-kg. capacity rolling bridge jack is specifically designed for use with a full-sized scissor lift or four-post lift. The RJ6W provides you with the ability and added versatility to raise the wheels off the runways of your car lift.

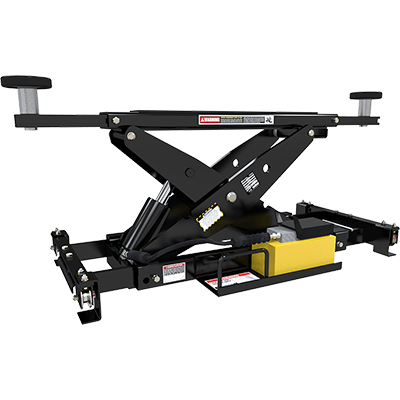

RJ7W (5175249)
3,175-kg. Capacity / Rolling Bridge Jack / Easy-Roll Wheels
This 3,175-kg. capacity rolling bridge jack is made for an HD-14 four-post lift. Each rolling bridge jack comes complete with three safety-lock positions and stackable pad adapters to provide added clearance when needed.

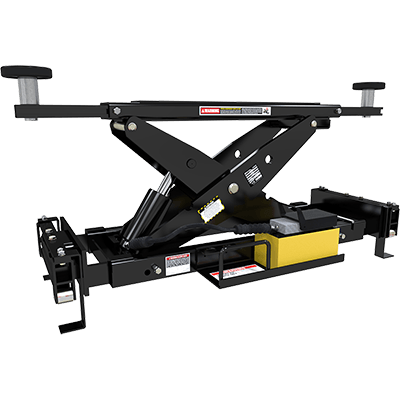

RJ9W (5175252)
4,082-kg. Capacity / Rolling Bridge Jack / Easy-Roll Wheels
BendPak’s 4,082-kg. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.

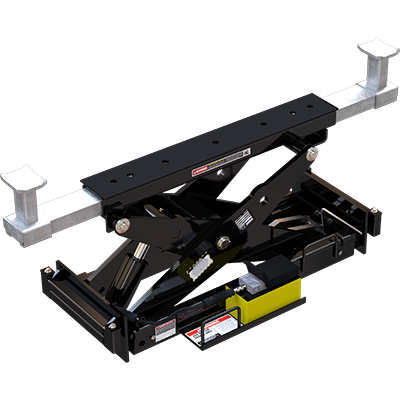

RBJ15000 (5175031)
6,804-kg. Capacity / Rolling Bridge Jack
Our 6,804-kg. capacity bridge jack is made just for the HDS-35 four-post lift. This particular car lift is truly made for massive trucks and commercial equipment. Check out the RBJ15000 jack if you need to perform full wheel service on heavy-duty vehicles.

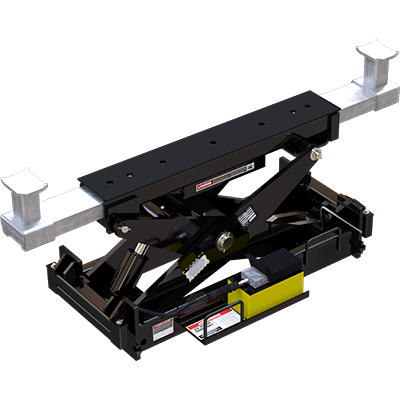

RBJ18000 (5175032)
8,164 kg. Capacity / Rolling Bridge Jack
The powerful 8,164-kg capacity RBJ18000 rolling bridge jack is made for use with your HD-35 4-Post series lift. Sometimes a vehicle’s centre of gravity isn’t in the exact middle of the vehicle. Even a 13,608-kg vehicle might require a jack that is rated for more than half the vehicle’s weight.

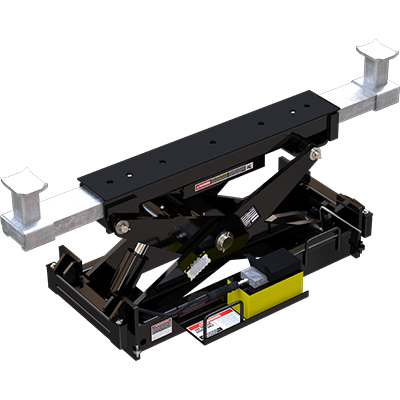

RBJ25000 (5175033)
11,340-kg. Capacity / Rolling Bridge Jack
This is our most powerful rolling bridge jack ever, with 11,340-kg. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 18,144-kg. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels.
Accommodate an Incredible Variety of Vehicle Types
BendPak's scissor-style jacking beams offer peerless jacking speed and convenience. One unit provides you with the ability to raise two wheels off the lift runways, while two jacks can lift the entire car for full wheel service. Their exclusive telescoping roller design adjusts to different tread widths, so you don’t need an adapter to work on a variety of vehicles. Reaching factory-approved jacking points has never been easier, and precision rollers enable you to position them anywhere beneath the car.
Please note: each jack would ideally lift half the weight of your car or truck, but the centre of gravity may not be the dead-centre of the lifted vehicle. You must know the weight distribution of each vehicle before placing jacking beam, so you don’t accidentally overload one of the jacks. In some cases, jacking beams in the front and back of the vehicle being lifted require different lift capacities.
BendPak offers seven four-post bridge jacks:
- RBJ4500 / 2,041 kg.
- RBJ6000 / 2,722 kg.
- RBJ7000 / 3,175 kg.
- RBJ9000 / 4,082 kg.
Two Jacks Make One Full Set
While you can certainly use a single jacking beam effectively in your garage, two jacks work together to effectively replace a two-post lift or scissor lift. Sliding two hydraulic jacks along the inner lift platforms is effortless. An airline kit will let both units share the same air compressor source without requiring you to unplug or reconnect any hoses. Stackable pad adapters come standard with every purchase. Enjoy the view!
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
