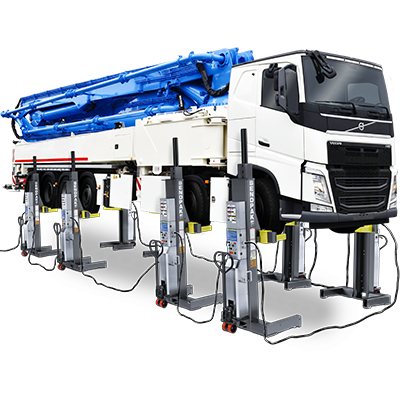

PCL-18B (Set of 8)

Features

• 8,165-kg. individual column capacity / ​65,317-kg. maximum system capacity
• Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
• Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
• 208-240V, 3-phase main power system - optional voltages available upon request
• SINGLE, PAIR or TEAM operation
• For a standard four-column set, just three 9 metre cables are used leaving the front or back of the lift clear of cable obstructions
• Simple operation, long service life and minimum maintenance
• Intuitive controls allow the lift to be fully programmed and controlled from any column
• Control systems feature 24-volt safety circuitry
• The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
• Smart electronics feature self-diagnostics and self-calibration functions
• Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
• Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
• Two-speed lowering option – turtle or rabbit speed settings
• Each column is equipped with a warning light and audible alarm for critical warning alerts
• Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
• Separate key lock enclosure on each column
• Electronics are multi-fuse protected
• An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
• Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
• Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
• Extended forks accommodate wide tires and deep wheel configurations
• Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
• Tandem ​203 mm diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
• Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
• Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
• Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
• Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
• Multiple, automatic, independent safety locks spaced every four inches ensure safe operation
• Space-saving design, reduced column weight and a tight turning radius provides improved mobility
• Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay
• Durable powder-coat finish
