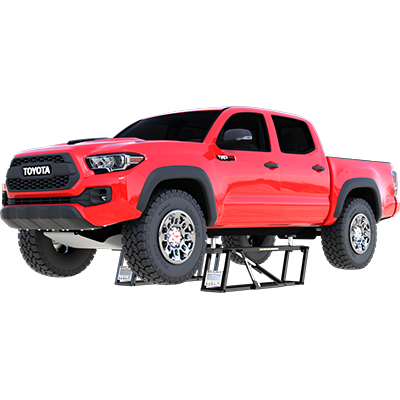

BL-7000EXT
SKU# 5175218
3,175-kg. Capacity / 533 mm Maximum Rise / 89 mm Lowered Height / 1,905 mm Frame Length
For more lift capacity and lift point reach than any QuickJack model we make, there's no substitute for the BL-7000EXT. Its reinforced frame offers 3,175-kgs. of reliable lift and a lifetime of enjoyment servicing longer light-duty trucks, SUVs, older models and anything else longer wheelbases.
Extended-Reach and Extreme Lifting Power
The BL-7000EXT is a remarkable achievement in engineering. Its 1,905 mm overall length offers an impressive 1,676 mm lift point spread, ensuring longer vehicles can be secured at the manufacturer's intended jack points. With other portable lifts, this can be difficult or even impossible. Given the sheer length of some vehicles, there are even mid-rise lifts that can't accommodate longer vehicles. In particular, this remains a problem for small businesses and home garages that can't fit or afford a full-size two-post or four-post lift. It's our aim to provide the best solutions possible to wrenchers in every walk of life, and the EXT series is our way to bring more mechanics than ever into the QuickJack family.
What about safety? For many, safety is the most stressful part of working on heavy vehicles, and jack stands are polarizing safety features in the industry. Some see them as a lifeline in case something goes wrong with the lifting apparatus, while others are simply sick and tired of busting out the floor jack and lining up stands. QuickJack's EXT series doesn't just make life easier: it's the only truly portable open-center lift that's also safer than jack stands. In fact, the two automatic mechanical locks act as built-in jack stands. The extended frames of the EXT displace the weight of the vehicle across a much, much larger surface area than could ever be possible with jack stands. This reduces wear on the frames, as opposed to stands, which get beat up relatively quickly. QuickJack's BL-7000EXT guarantees safety-first, safety always. No jack stands required.
Features
- 3,175-kg. capacity
- Extended lifting point spread
- From stow to go in less than 60 seconds
- Dual-position automatic safety lock bars engage automatically as the lift rises
- Dual locking positions: mid level and full rise
- Extended, cantilevered rubber block trays provide increased rubber block reach
- Portable power unit features a remote push-button control for simple operation
- Steel mounted urethane wheels provide effortless rolling of jack frames on floor
- Remote pendant control features a 13-ft. cord
- Power unit features a built-in hydraulic flow divider for precise equalized lifting
- Open-center design for clear under car access
- Quick-connect/disconnect hoses for fast and convenient set-up
- Convenient handles allow for easy positioning of the jack frames
- Strong 14-gauge welded steel frames
- It’s a jack you can use when you need it then conveniently store out of the way
- Provides quick, wheels-free convenience for brake and tire service and clear undercarriage access of all types of vehicles
- Low-profile jack frames fit under most race cars
- Powerful hydraulic cylinders eliminate the need for screw mechanisms
- Integrated power-assist canisters increase the lowering speed
- Hydraulic cylinders feature integrated velocity-fuse safety valves
- A convenient metal carrier with handle keeps the power unit protected and easily mobile
- Includes an eight piece set of adjustable and stackable rubber lift blocks to support cars at precise locations for increased stability and safety
- Detailed installation, maintenance and safety instructions accompany each QuickJack system
- Durable powder coat finish
