Engine Stands by Ranger

RES-1TF

SKU# 5150470

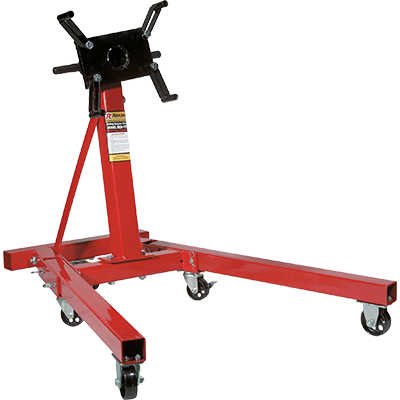

1 ton (1-mt.) Folding Engine Stand


This heavy-duty engine stand has a 907 kg. capacity, and its compact design saves an incredible amount of space.

RES-1TF Folding Engine Stand by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

The Perfect Engine Stand for all Shops and Garages

The RES-1TF 1 ton (1-mt.) capacity engine stand is all about functional convenience. When you need it, it's right there to lend its helping 360° swivel claw. When you're done, just fold it up and put it in a corner, where it will wait patiently until called upon again. The RES-1TF features a sturdy, wide-base design to prevent tipping under load, and the front swivel casters let you position the engine exactly where you need it. The neck is reinforced to eliminate flex while the slotted adjustable saddle permits quick and easy installation.

But, the most important thing to know about the RES-1TF is that it's a true team player. Unlike other hulking pieces of shop equipment that constantly make their presence known by getting in your way, this engine stand gets the job done and then gracefully fades into the background of the garage. Make the RES-1TF a part of your team today.

Features

  • Folds upright to conserve valuable floor space
  • Heavy steel construction for maximum durability
  • Neck is reinforced to increase strength and eliminate flex
  • Long rubber-grip handle eases positioning
  • Head swivels 360° to easily position engine
  • Slotted adjustable saddle permits quick and easy installation
  • Heavy-duty swivel casters
  • 4-wheel design provides maximum stability

Specifications

RES-1TF specs diagram
Holding capacity:
2,000 lbs. (907 kg)
Overall height:
37.5" (953 mm)
Overall length:
41" (1,041 mm)
Rear width:
27.5" (2,210 mm)
Front width:
31" (787 mm)
Shipping weight:
106 lbs. (38 kg)
Shipping dimensions:
38" x 18" x 7" (965 mm x 457 mm x 178 mm)
